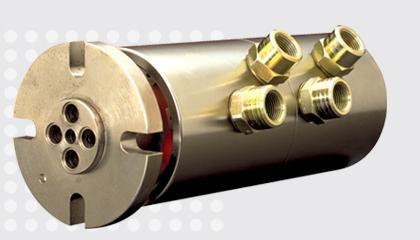

| HPMC/HSMC 系列 |
|
|
Features & Benefits
- High Pressure or High Speed Applications - Duff-Norton multi-port Rotary Unions are available in both high pressure (HPMC Series) and high speed (HSMC Series) configurations
- Pressures Up to 5,880 psi - HPMC Series Rotary Unions are designed for higher pressure, available with up to eight ports as standard and are suitable for use in low speed applications for pressures up to 5,880 psi
- Available up to 4 Ports - HSMC Series Rotary Unions are available with up to four ports as standard
- Speeds up to 3,000 RPM - HSMC Series is perfect for low pressure applications, up to 175 psi with rotational speeds up to 3,000 RPM
- No Cross Contamination - Feel free to run dissimilar fluids through Duff-Norton Multi-Port Rotary Unions as each port is always individually sealed eliminating cross contamination between circuits
规格
|
媒介
|
压力*
|
|
水, 空气, 液压油
|
170 PSI (HSMC)
5,880 PSI (HPMC)
|
|
温度*
|
转速*
|
|
248º F(HSMC & HPMC)
|
3,000 RPM (HSMC)
180 RPM (HPMC)
|
|
螺纹
|
材料
|
|
3/8" to 3/4" NPT or BSP
|
Nickel Plated Steel
|
|
标准端口数
|
|
2 to 8
|
*详见参数表
|
|
|
|
